Metabo Motor Special of Power Plant Pipe beveller groove machine automatic feed
The main of performance
This series of products is specially designed for metal pipe(thin wall pipe).It is outside mounted and it has a small working radius, which is suitable for a narrow working situation.This type products main applied in the field of power plant pipeline installation.The machine is automaic feed operated (install the machine on the open end of pipe). The operation is simple and the processing speed is fastly. The grooved surface after processing is smoothly. Suitable for heat exchangers, pipes, boilers, etc.
The function of Product
1. Compact structure,lightweight,easy to carry out.
2. Easy to operation ,self-centering.Automatic feed
3. Bevel surface smoothly,Meet welding requirements.
4. Cold beveling,won’t influence the material of pipe,no spark.
5. Bevel angle can be customization.
6. Process carbon steel,stainless steel,alloy etc with U,V,J compound bevel.
The specification of product
| Model | Working Range(O.D) | Wall Thickness | Accessory Block | Body Material |
| ISO-63C | 28-63mm | <=12mm | 28,32,38,42,45,51,54,57,60,63 | Steel |
| ISO-76C | 42-76mm | <=12mm | 42,45,51,54,57,60,63,68,76 | Steel |
| ISO-89C | 63-89mm | <=12mm | 63,68,76,83,89 | Steel |
| ISO-114C | 76-114mm | <=12mm | 76,83,89,95,102,108,114 | Aluminum Alloy |
| Note:Non-Standard Machines are available according to customer's requirement. |

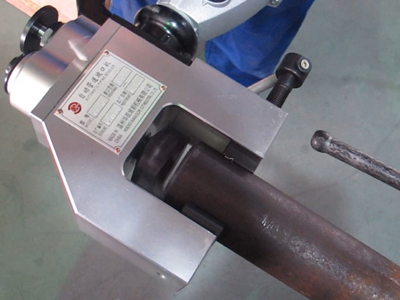

ISO Type Machine with Metabo Motor.
Different Model that Working Range is different.
The Opeation general steps as follows:
1.Measure pipe size(O.D),choose suitable expand block and install.
2.put machine in the pipe,fixed the machine
3.install the tools
4.start to process

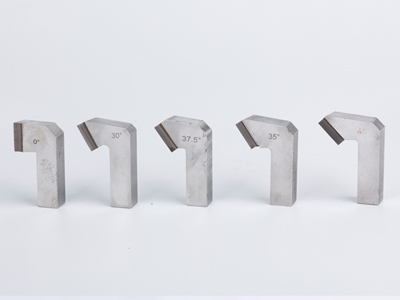

In the picture , the degree of bevel tool hav 0 , 30 , 35 , 37.5 , 45 degree.
We are manufacturers, we have professional engineers,
you provide processing requirements and drawings,
we will customize products for you to meet your needs.
We also can video with you,let our engineers teach you how to use machine.
Before place order ,please provide more details about your pipe,
We will recommend suitable machine to you.
1.PIPE SIZE (O.D):
2.PIPE THICKNESS:
3.PIPE MATERIAL:
4.DRIVEN:
Please check our website. www.zjwellnit.com
Please feel free contact us if you are interested in any product.
