Home > Pipe Cutting And Beveling Machine >

Cold Pipe Cutting And Beveling Machine

Zhejiang Wellnit Mechanical Technology Co.,Ltd
Contact Now

Cold Pipe Cutting And Beveling Machine

  • 1
  • 2
  • 3

Brand Name : Wellnit

Model Number : OC

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 set

Price : $3000/set

Payment Terms : T/T

Supply Ability : 40 sets per month

Delivery Time : within 7 days

Packaging Details : Plywood

Motor Power : 1.8-2.0KW

Supply : 220/240/380V 1PH/3PH

Working : 1" -56"

Wall Thickness : less than 100mm

Body : Steel or Aluminum Alloy

Contact Now

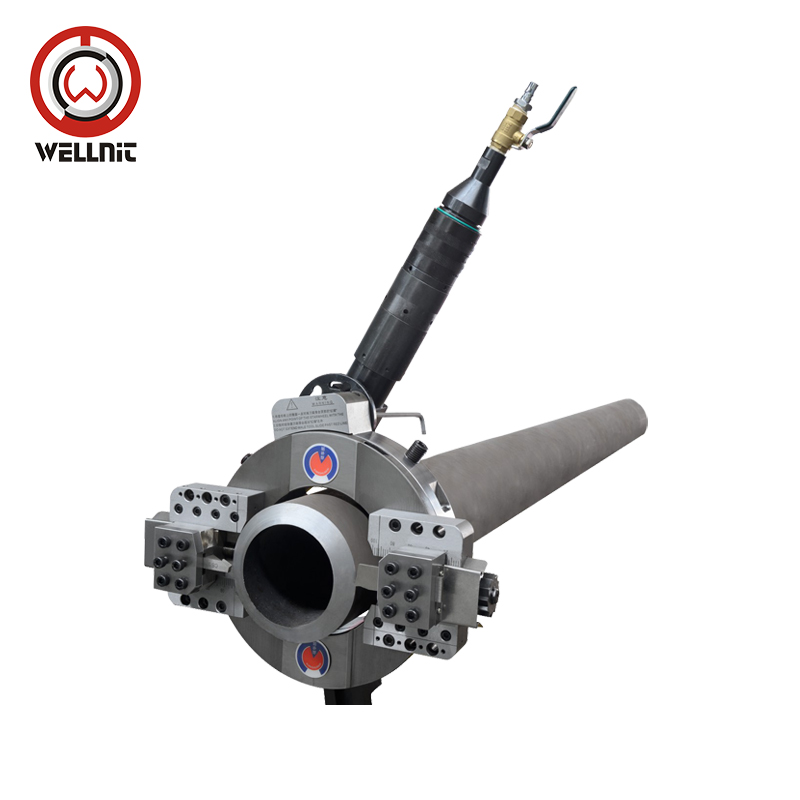

Explosion Proof pipe cutting and beveling machine more stable

Function:

1. Simple installation and fast operation;
2. It is applicable to various kinds of materials processing, and available to a wide range of pipe diameter;
3. As it adopts mechanical cutting groove method for cold working, it can maintain well mechanical properties of the material quality.
4. Ideal pipe end preparation with various shapes as flat, V, X, and U shape can meet different technological requirements for butt welding.

Specification:

Cold Pipe Cutting And Beveling Machine

Electric:

Convenient power supply
Stable Performance
Popular choice
Electric requirement:220/240V 1PH 50/60HZ
Motor Power :1.8-2.0KW

Cold Pipe Cutting And Beveling Machine

Pneumatic:

Explosion Proof
Stable Performance
Easy to maintenance
Air requirement:2000L/min @1.0Mpa
Double motor for big model or heavy duty

Cold Pipe Cutting And Beveling Machine

Hydraulic:

Powerful drive, High efficiency
Stable Performance, Low noise
Ideal for heavy wall thickness & large size pipe
Power:5.5KW
Voltage Supply: 380V 3PH 50/60Hz
Rated Pressure:10MPa
Rated flow:5-30L/min

Open Way: Manual / Remote control

Oil line lenth :6 meters

Cold Pipe Cutting And Beveling Machine

Servo Motor:

Powerful drive, High efficiency
Low noise ,Stable Performance
Ideal for heavy wall thickness & large size pipe
Electric Power: 220V 1PH 50/60Hz;
Power:2.3KW

Rotation Speed : 0-20r/min

stepless regulation

Cold Pipe Cutting And Beveling Machine

BEVELING SHAPE

*other beveling shape, angle and pipe material, please declare before order

Cold Pipe Cutting And Beveling Machine

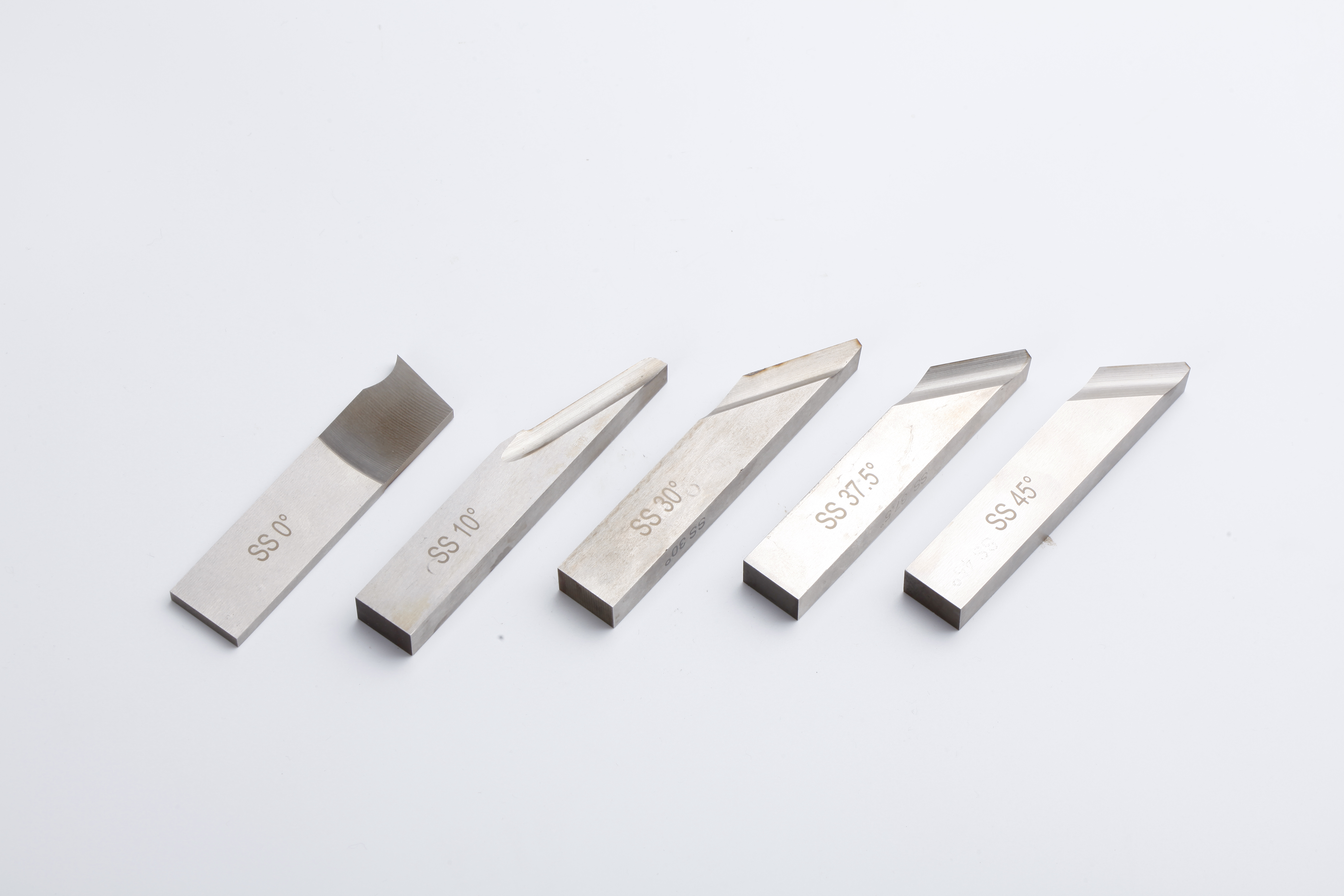

TOOLINGS

Material:M42
Type:cut,bevel,double bevel,
compound bevel,counterbore
Angle:0°,30°,37.5°,
Double 30°,37.5°+10°

Cold Pipe Cutting And Beveling Machine

Before you place order to us, please let us know the following information:

*Choose the right Model


*Confirm your electric power supply ( Voltage, frequency and phase)


*Confirm the beveling angel required


*Confirm the welding joint required (U, V, Double V or Compound preparation)


*Advise your pipe material ( Carbon steel, stainless steel or others)


*Other special demands about machine


*The spare parts needed


*If the pipe wall thickness more than 30mm, inform us in advance (Important)


Product Tags:

Explosion Proof pipe cutter and beveler



Pneumatic Pipe Cutting And Beveling Machine



2.0KW Pipe Cutting And Beveling Machine


China Cold Pipe Cutting And Beveling Machine wholesale

Cold Pipe Cutting And Beveling Machine Images
